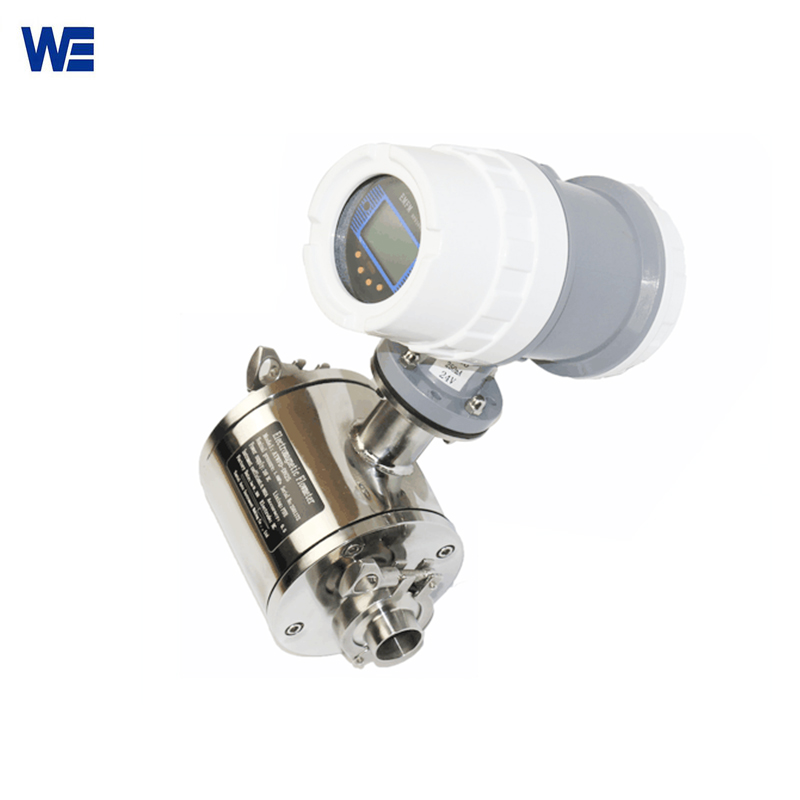

sanitary Beer Flow Meter mag flowmeter

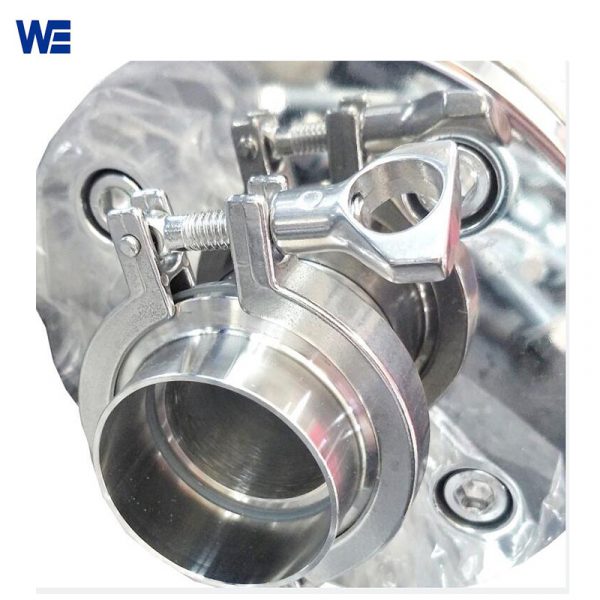

tri-clamp of the sanitary flow meter

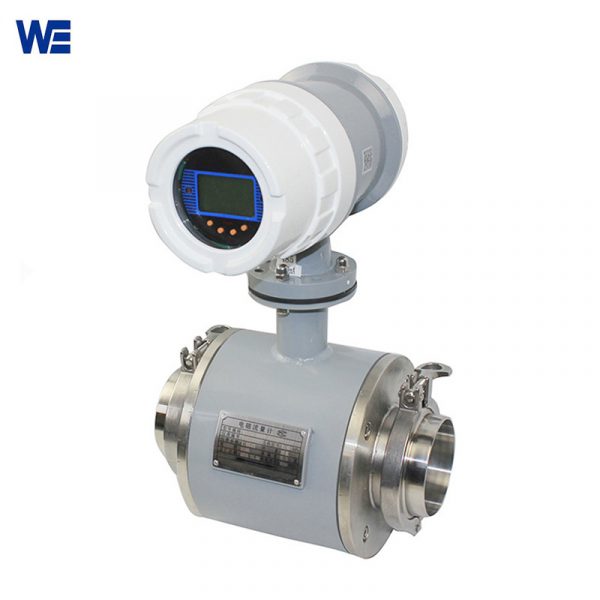

Electromagnetic sanitary Type Flow Meter

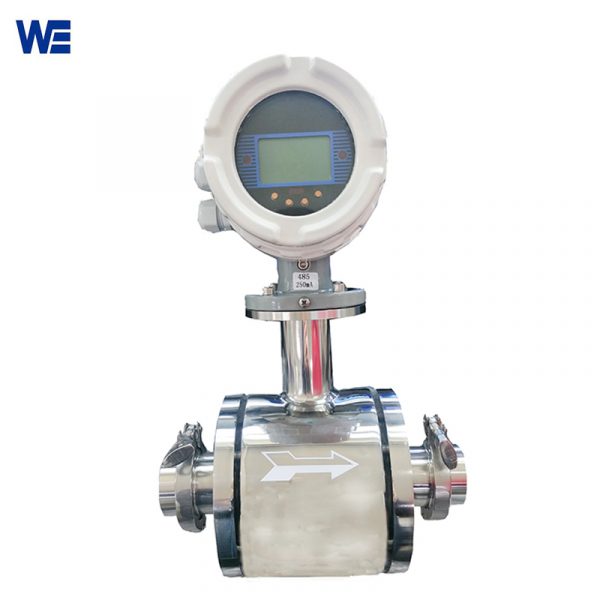

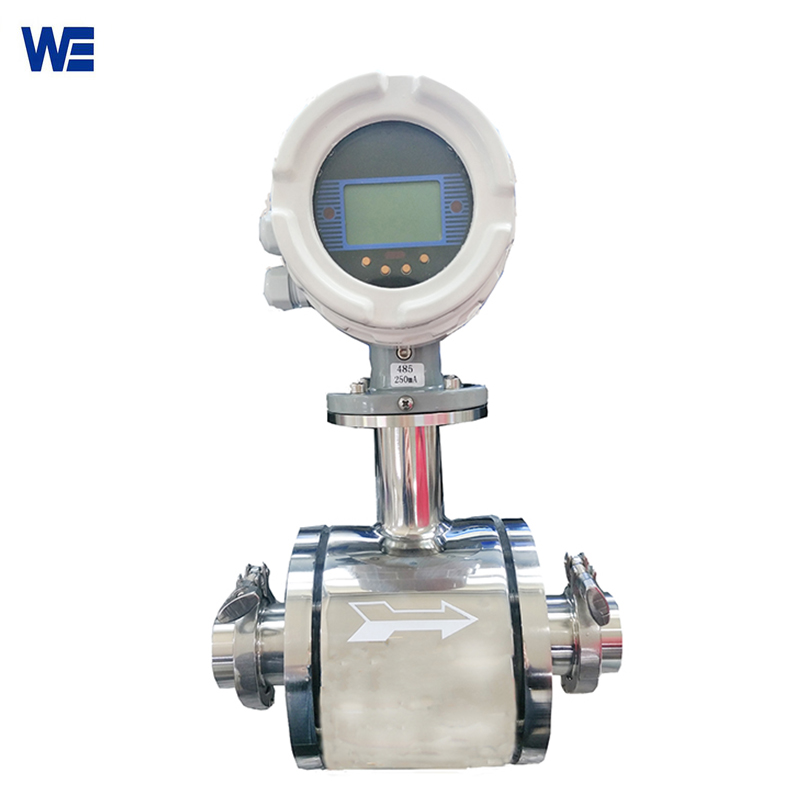

Mag Flow Transmitter

Sanitary Magnetic Flow Meter

Sanitary magnetic flow meter is hygienic application flow meter,sanitary magnetic flow meter is used in food, pharmaceutical, beverage,beer,brewing,medicine etc.why choose hygienic magnetic flow meter from us? Send your request without delay,our professional offer will make you satisfied.

Category: Magnetic Flow Meter
Share
  • Description

product overview

Why choose sanitary magnetic flow meter for the specific related industries ?

  •  The body of Sanitary magnetic flow meter is made of polished stainless steel (304 or 316L), electrode and lining materials all conform to sanitary standards.
  •  Sanitary electromagnetic flow meter has no flow blocking parts and movable parts in the measuring pipeline, not any worry about wear and blockage, which greatly improves the accuracy and repeatability of the magnetic flow meter too .
  •  Sanitary type magnetic flow meter has a very long life, It is already an ideal flow measurement and control instrument for the health and hygienic industry.

What is the application fields of sanitary mag flow meter ?

Sanitary magnetic flow meter is hygienic application flow meter,sanitary magnetic flow meter is used in food, pharmaceutical, beverage,beer,brewing,medicine etc.

Whether any way to reduce the sanitary flow meter price ?

  •  Sanitary magnetic flow meter price is obvious than  common models , the main reason is the body of the magnetic flow meter is fully stainless steel with mirror polishing surface, and the connecting part such as flange , tri-clamp are all full stainless material too  .
  • If you want to save sanitary flow meter price, you can change the body from polished stainless steel to painted carbon steel , as the liquids only directly contact with the lining material , actually there is not any bad affect on the usage and funciton of the sanitary flow meter with any hygiene problems.



Converter
Compact Type IP65
Remote Type IP65(IP68 optional)
Measurement sensor
Nominal Diameter DN15-DN1000
Lining Material Chloroprene rubber (CR),
  Polytetrafluoroethylene (PTFE/F4),
  Fluorinated ethylene propylene (FEP/F46),
  Teflon(PFA)
Electrode Material 316L Stainless Steel,   Hastelloy C, Hastelloy B, Ti, Ta, Pt
Ingress Protection IP68 IP65
Medium Temperature -25 – 180℃ -10 – 80℃
Serial communications RS-485/ HART
Output Current (4-20 mA) , pulse ,   frequency , state switch
Max measuring error ±0.5%(Flow   speed > 1m/s);
  ±0.5% ±2mm/s(Flow speed <1m/s)
Power supply 100-240VAC,50/60Hz,   22VDC—26VDC
Signal cable Apply only to remote type
Shielded cable Signal section,wire:   0.5mm2 Cu /AWG20

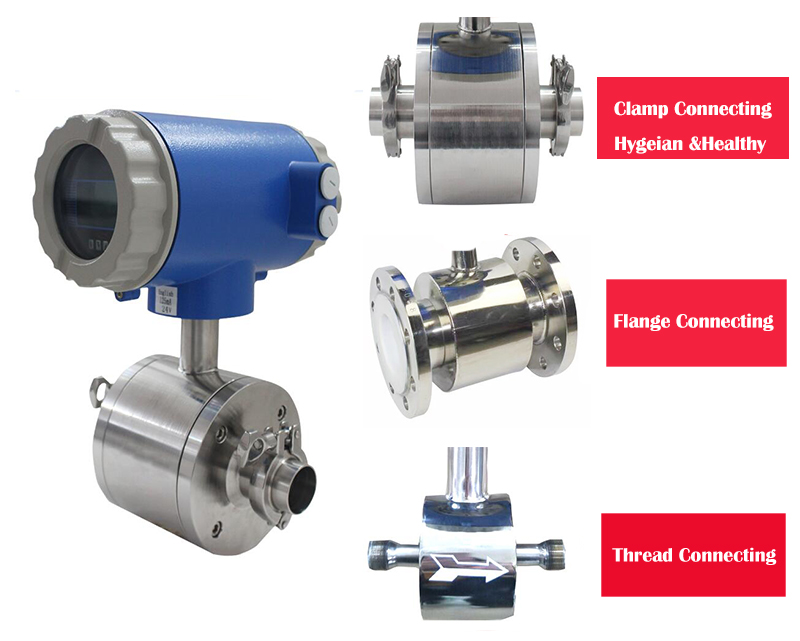

details Magnetic flowmeter China factorysanitary type mag flow meter

Sanitary magnetic flow meter

mag flow meter calibrationflow meter for water productionchina magnetic flow meter price

site photos of wepower magnetic flow meter

china magnetic flow meter



PRODUCT ENQUIRE

    RELATED PRODUCTS

    • sanitary flow meter

      Hygienic Magnetic Flow Meter

    • Battery Powered Magnetic Flow Meters China

      Wastewater Flow Meter

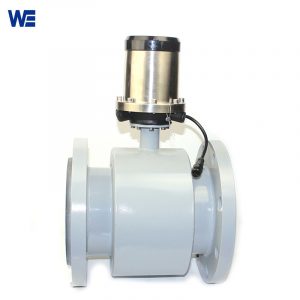

    • Electromagnetic Flow Transmitter

      Magnetic Flow Transmitter

    • Magnetic-Inductive Flow Meter

      Magnetic-Inductive Flow Meter

    • Electromagnetic Flow Meter

      Magnetic Flow Meter Transmitter

    • electromagnetic flow meter-sewage battery powered mag flowmeter

      Electromagnetic Water Flow Meter

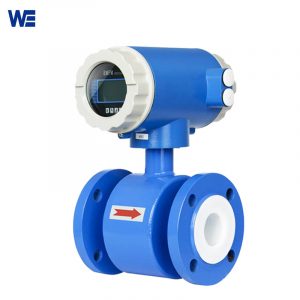

    • Water Flow Meter With Digital Display
