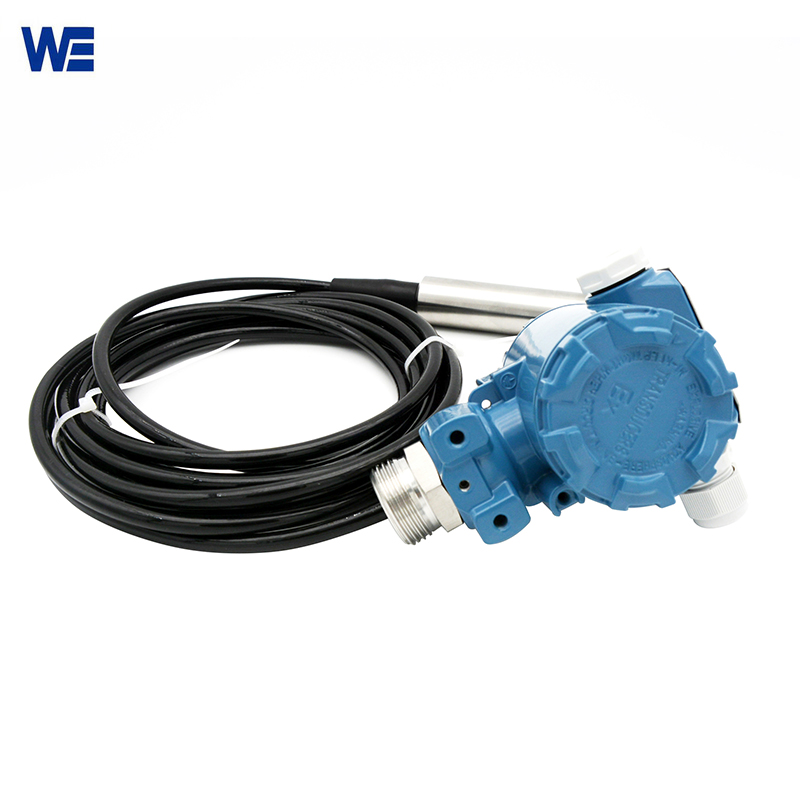

Submersible Liquid Level Transmitter
The Submersible liquid Level Transmitter is suitable for the level measurement of various media in petrochemical, metallurgy, electric power, pharmaceutical, water supply and drainage, environmental protection and other systems and industries.
What Industries Are Submersible Liquid Level Transmitters Suitable For?
The Submersible Liquid Level Transmitter is suitable for the level measurement of various media in petrochemical, metallurgy, electric power, pharmaceutical, water supply and drainage, environmental protection and other systems and industries. The exquisite structure, simple adjustment and flexible installation provide convenience for users to use easily. Standard signal output modes such as 4-20mA, 0-5v, 0-10mA, etc. can be selected by the user according to their needs. The stainless steel sensor of the Submersible liquid Level Transmitter is equipped with an extensible polyurethane shell material cable. The submersible liquid level transmitter can choose a sensor with a heavy anchor. This kind of input type liquid level gauge is used in fluctuations Or in the Rapid liquid occasion.
How To Use Submersible Liquid Level Transmitter?
Submersible Liquid Level Transmitter is made of advanced isolation diffused silicon sensitive elements. It can be directly put into the container or water body to accurately measure the height from the end of the water level gauge to the water surface, and the water level value can be externally passed through 4-20mA signal Output.
Features Of Submersible Liquid Level Transmitter:
- Good stability and high precision.
- Directly into the measured medium, it is very convenient to install and use.
- Solid structure, no moving parts, high reliability, long service life, high-precision measurement can be made from water, oil to thick paste, and is not affected by the foaming, deposition, and electrical characteristics of the measured medium.
- Wide range of temperature compensation.
- Power reverse polarity protection and overload current limit protection.
| Model | KSL Submersible Hydrostatic Level Transmitter |
| Measuring Range | 0~0.5~500m H2O |
| Power supply | 12~36VDC (Standard 24VDC) |
| Output Signal | 4~20mA; 0~5V; 1~5V; 0-10V; RS485 |
| Accuracy | 0.2%F.S; 0.5%FS |
| Response Time | ≤1ms (up to 90%FS) |
| Long-term Stability | ±2F.S/Year |
| Medium Temperature | -20~85℃ |
| Working Temperature | -40~80℃ |
| Overload Capacity | 200%F.S |
| Insulation Resistance | 100MΩ/250VDC |
| Sensitivity Drift | ±2%F.S |
| Zero Drift | ±2%F.S |
| Protection | IP68 |
| Measuring Medium | Various medium which is compatible with SS304 |
| Mechanical Vibration | 20g (20~5000Hz) |
| Impact | 100g (11MS) |
| Material | Junction box: Low content Cu-Al alloy
Probe: Stainless steel Cable: Polyurethane cable |
| Application | Static liquid level, Liquid tank, Sewage water, Well, Lake, etc. |
| Model Code KSL | Specification | |||||||||
| Type | 1 | Cable Type | ||||||||
| 2 | Rod Type | |||||||||
| Process Connecting | T | Thread | ||||||||
| N | Flange | |||||||||
| Y | Other | |||||||||
| Wetted Material | 1 | NBR (Black color) (standard option) | Cable Type | |||||||
| 2 | Stainless steel cable | |||||||||
| 3 | SS304 | Rod Type | ||||||||
| 4 | SS316 | |||||||||
| Explosion-proof | E | Without Explosion-proof | ||||||||
| F | Explosion-proof Exia ⅡCT6 | |||||||||
| Display | J | Without Display | ||||||||
| K | With Display | |||||||||
| Signal Output | M | 4-20Ma | ||||||||
| W | 1-5V /0-5V/0-10V | |||||||||
| / | Range （mm） | |||||||||
| / | Liquid and Density （g/cm³ ） | |||||||||
