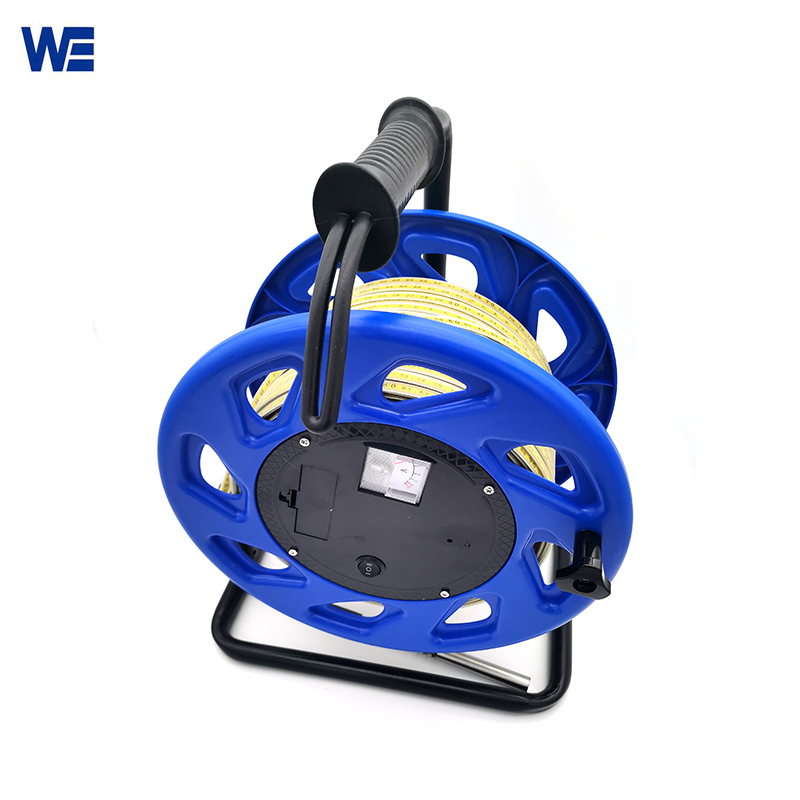

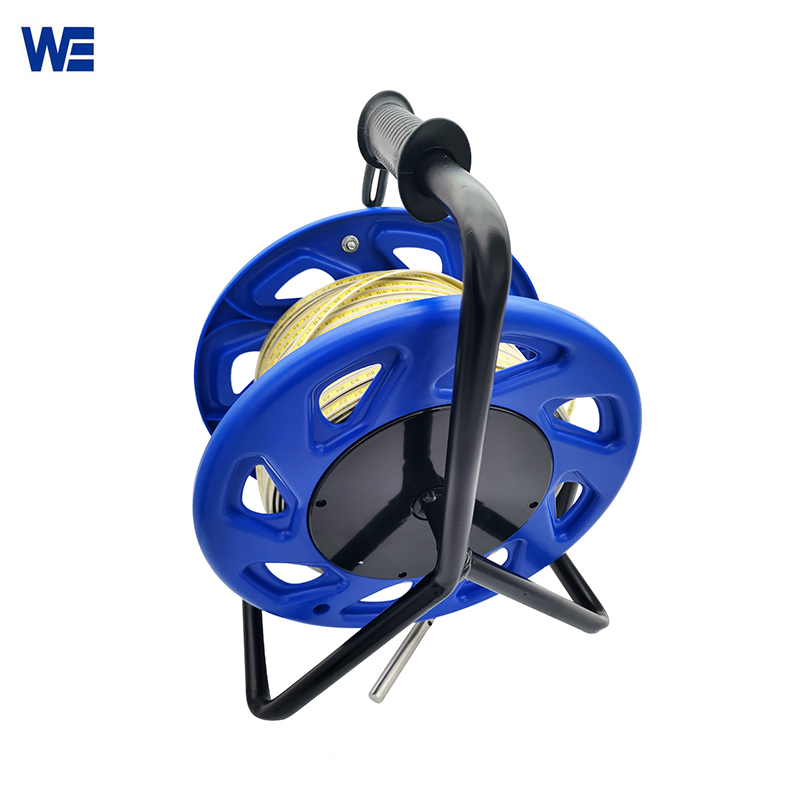

Water Level Measuring Tape
Water level measuring tape contains a stainless steel sensor probe, providing unparalleled accuracy particularly for small bore piezometer installations, drilling projects , deep well level testing , borehole and standpipes depth measuring.
Water Level Measuring Tape contains a stainless steel sensor probe, providing unparalleled accuracy particularly for small bore piezometer installations, drilling projects , deep well level testing , borehole and standpipes depth measuring etc .
How To Use Water Level Measuring Tape?
As the level tape probe is lowered into the water, a single audible buzzer is heard and a red light showed. The measuring cable ruler is durable with PE coating which can withstand moisture , it is mounted on a reel disc with brake and probe holders for easy operation and storage . Please store the water level measuring tapes preventing direct sunshine and moisture environment . Standard 9V battery are housed in the front for quick and easy access.
| Product Name | Water Level Measuring Tape |
| Measure Range (m) | 30m,50m,100m ,150m,200m,250m,300m,350m,400m,450m,500m |
| Minimum Indication(mm) | 1 mm |
| Repeat Indication (mm) | ±2.0 |
| Power Supply(V) | 9V Lithium Battery |
| Probe Dimension | 14*220mm;(Dia16mm can be offered too) |
| Material | ● ABS Reel and handle ,Metal frame (Range less than 350m )
● Metal reel , Metal Handle , Metal Frame (Range≥ 400m ) ● Metal reel , metal handle ,Metal Frame ,with wheel trolley (Range=500m) |
| Cable Material /Size | Steel ruler with PE Coating ; Width: 12mm * Thickness 2mm |
| Ambient Temperature | -20~65°C, relative humidity ≤90%, no condensed water, no strong magnetic field interference |
| Indication Way | Indicator Light, Buzzer when the probe makes contact with water |
| Product Size | Length 36cm * Width 26cm * Height 44cm |
| Weight | 5KGS (50m )/ 10KGS(300m) /23KGS(500m) |
| Reel Disc Color | Yellow / Blue |
Customer Feedback
Our good quality level meter ,fast shipping , considerate service always get nice feedback from our customers all over the world , please see the details.
Maintenance & Storage For Water Level Measuring Tape:
- To save battery capacity, whenever the measurement is completed, you should immediately turn off the power switch, do not forget! Replace it with a new battery, the cable from the winding drive should be winded all down, twist off the front panel of the two self-tapping screws and remove the front panel, you can replace the batteries with new ones.
- After the completion usage of the measurement, the probe and cable must be wipe clean, and the cable should neatly wound on the winding drive, and then placed in the cabinet.
- Probe requires sealing, the absolute prohibition of removal, in order to avoid damage.
- Cable should not be bent, especially near the end portion of the probe, in order to avoid damage and breakage.
- The probe should be gently and avoid severe vibration.
contact to us to get our professional solutions now !
