Well Level Sensor

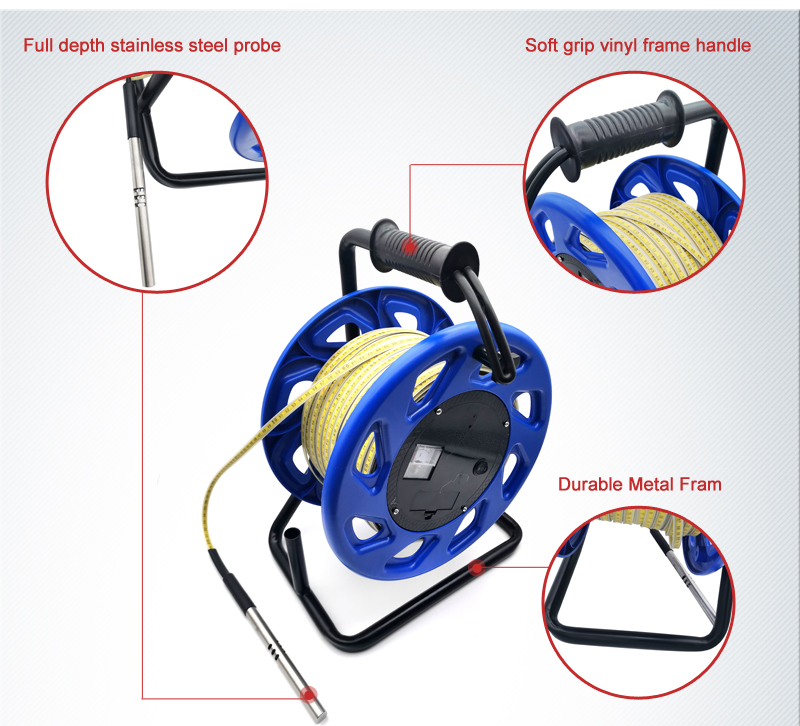

Well Level Sensor include a shrouded stainless steel probe (allows accurate level determinations under cascading water conditions), a buzzer (with adjustable volume control), and sensitivity control as standard.
Assembly Of Well Level Sensor:

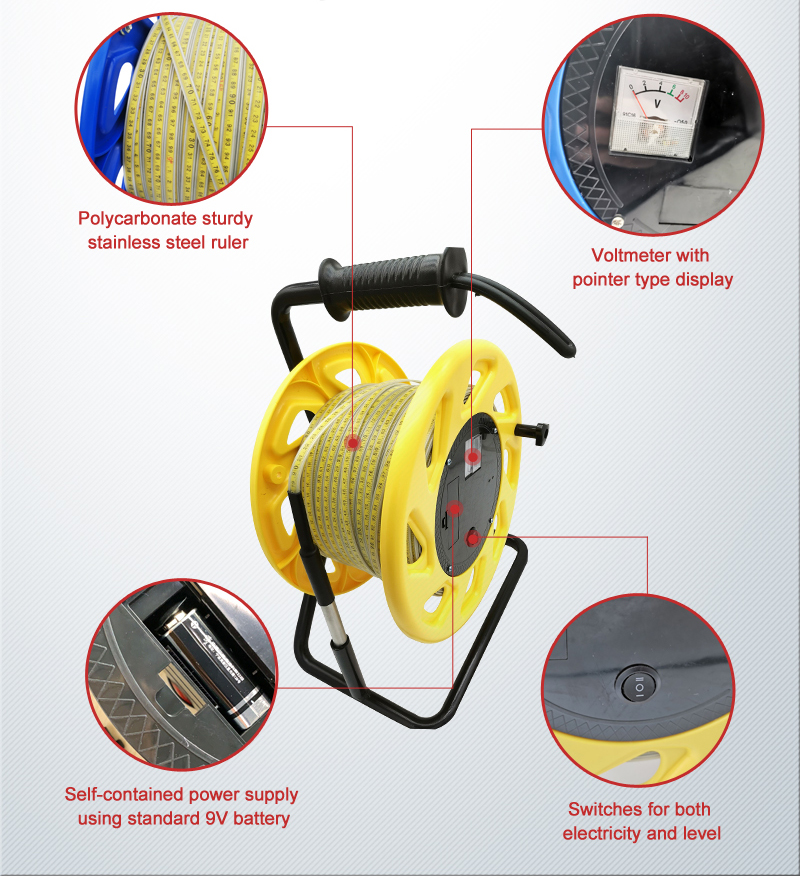

Well Level Sensor include a shrouded stainless steel probe (allows accurate level determinations under cascading water conditions), a buzzer (with adjustable volume control), and sensitivity control as standard. The moisture resistant electronics and standard 9V battery are housed in the front for quick and easy access. Water well level sensor is also the well depth measuring device which is very popular with the related borewell, standpipes, water well fields.
Maintenance and storage of well level sensor:
- Due to limited battery capacity, whenever the measurement is completed, you should immediately turn off the power switch, do not forget! Replace it with a new battery, the cable from the winding drive should be winded all down, twist off the front panel of the two self-tapping screws and remove the front panel, you can replace the batteries with new ones.
- After the completion of the measurement the probe and cable must be wipe clean, and the cable should neatly wound on the winding drive, and then placed in the cabinet.
- Probe requires sealing, the absolute prohibition of removal, in order to avoid damage.
- When probe goes wrong, please send back to the factory for repair.
- Cable should not be bent, especially near the end portion of the probe, in order to avoid damage and breakage.
- The probe should be gently and avoid severe vibration.
| Product Name | Â Well Level Sensor |
| Measure Range (m) | WCL-30m, WCL-50m, WCL1-00m, WCL-150m, WCL-200m, WCL-250m, WCL-300m, WCL-350m, WCL-400m, WCL500m, etc |
| Minimum Indication(mm) | 1 mm |
| Repeat Indication (mm) | ±2.0 |
| Power Supply(V) | 9V Lithium Battery |
| Probe Dimension | 14*220mm;(Dia16mm can be offered too) |
| Material | â—Ź ABS Reel and handle ,Metal frame (Range less than 350m )

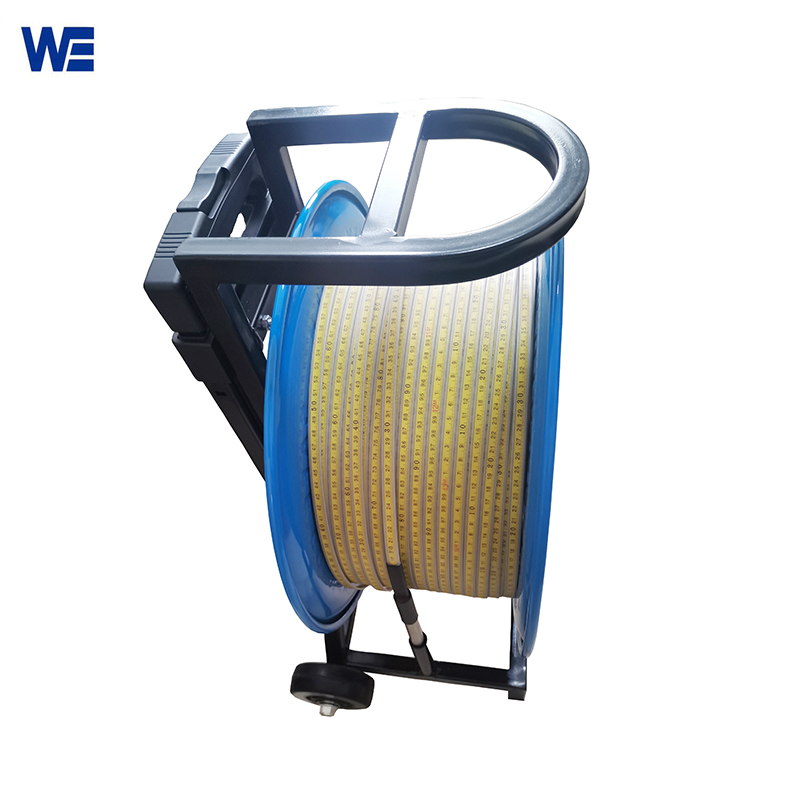

● Metal reel, Metal Handle, Metal Frame (Range≥ 400m ) ● Metal reel, metal handle, Metal Frame, with wheel trolley (Range=500m) |

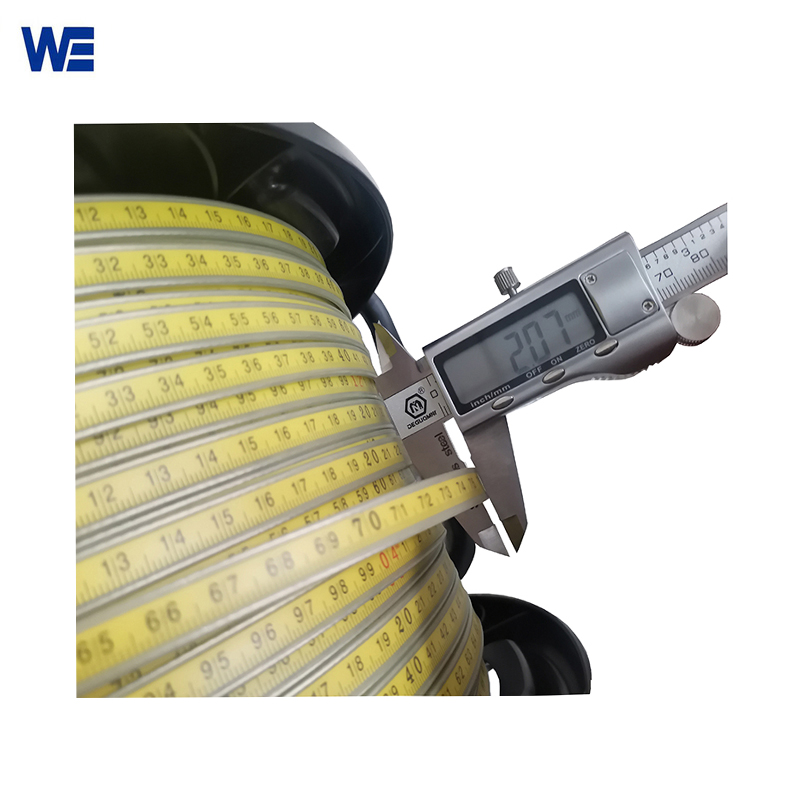

| Cable Material /Size | Steel ruler with PE Coating; Width: 12mm * Thickness 2mm |
| Ambient Temperature | -20~65°C, relative humidity ≤90%, no condensed water, no strong magnetic field interference |
| Indication Way | Indicator Light, Buzzer when the probe makes contact with water |
| Product Size | Length 36cm * Width 26cm * Height 44cm |
| Weight | 5KGS (50m )/ 10KGS(300m) /23KGS(500m) |
| Reel Disc Color | Yellow / Blue |
