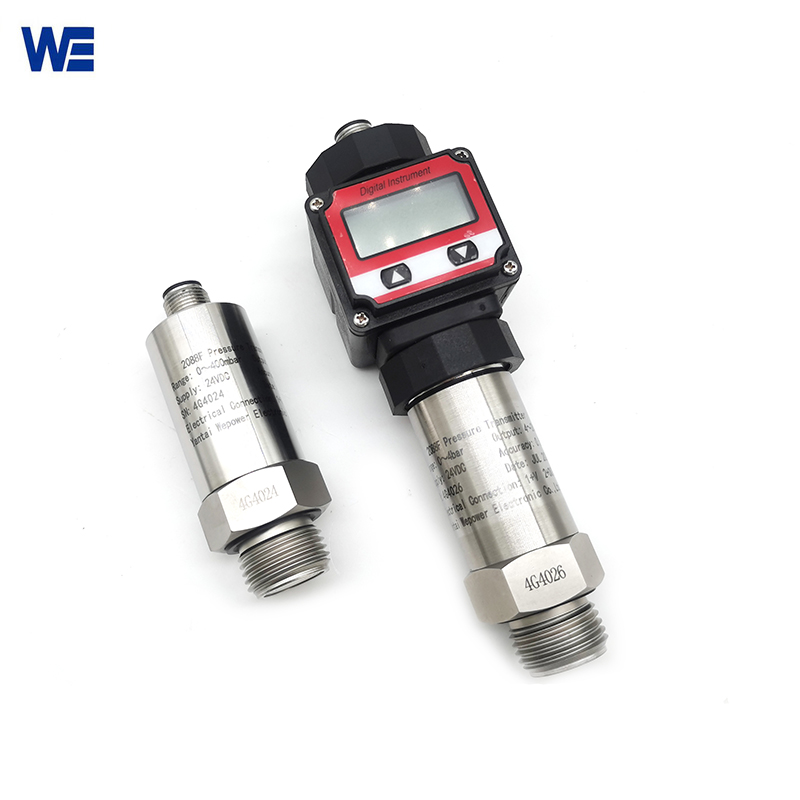

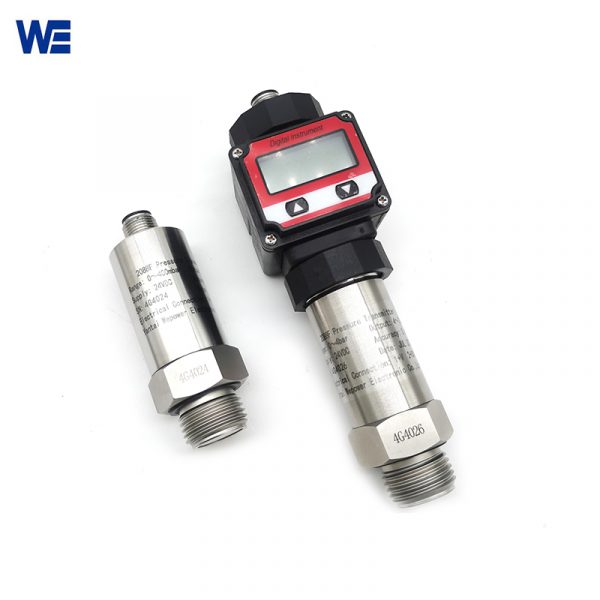

Air Pressure Sensor
2088S/2088M compact pressure transmitter is our popular pressure measurement products , the high grade production standard and technoloy ensure the the high accuracy and stability , bring you the good experience of industry pressure measuring . Offer more details site information to us now to start nice cooperation with Wepower Electronic !
Wepower 2088S/2088M air pressure sensor can monitor a variety of fluids including hot air, oil and gas. Wepower 2088 air pressure sensor is produced with the most common compact pressure transmitter technology, which can quickly detect pressure changes in tanks and pipelines. 2088S and 2088M air pressure sensor offers a good measurement advantage in gas.
The 2088 pressure transmitter is suitable for a wide range of power supply situations and can operate at voltages ranging from 12-28VDC. Wepower Electronic has also modified the electrical interface to an international common electrical interface in order to serve global clients.
| Name | Digital compact air pressure sensor 2088S& 2088M |
| Measurement Range (kPa) | -100kPa…0～10kPa…100MPa |
| Measuring medium | Liquid, gas |
| Application | Process, compressed air system, edible liquid/oil field |
| Accuracy | 0.25%, 0.5% |
| Ambient temperature | -10℃-70℃ |
| Medium temperature | -40-80°C; -40.-315°C |
| Diaphragm | To order |
| insulation | 100MΩ/250VDC |
| Pressure overload | 150%FS |
| Power supply | 24VDC |
| Output | 4～20mA, HART, MODBUS |
| Sensor filling oil | Silicon oil, fluorine oil |
| Electrical connection | M20x1.5 cable sealing head, NPT1/2 cable sealing head |
| Electronic housing | Aluminum alloy with sprayed surface |
| High pressure side filling fluid | Silicon oil, fluorine oil |
| Protection grade | IP65 |
Pressure measurement plays a vital role in industry, which is directly related to the stability, safety and efficiency of industrial production.Wepower Electronic is your reliable pressure measuring expert ,contact us for learn more !
