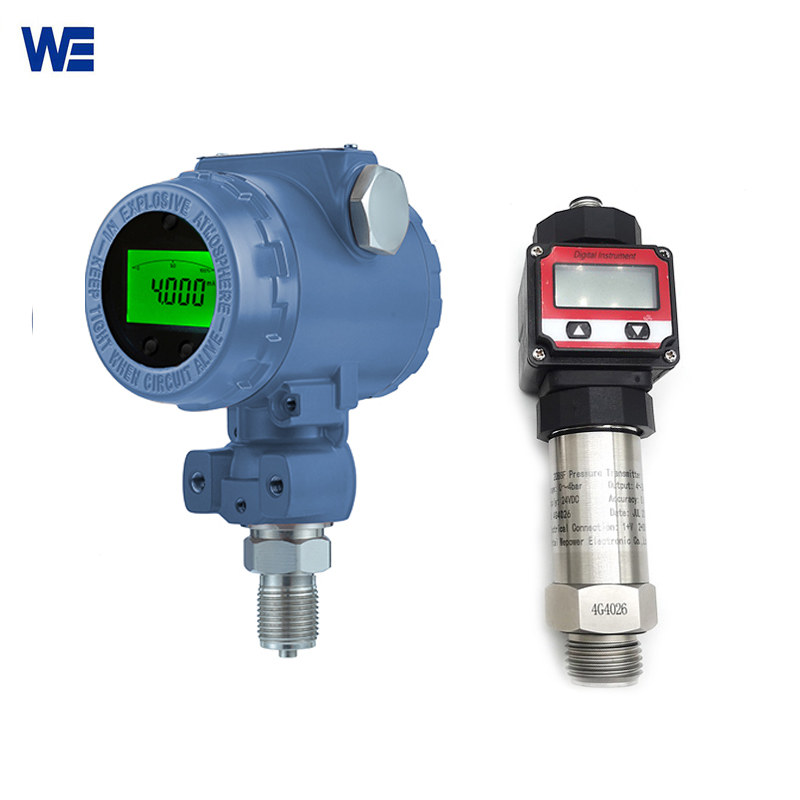

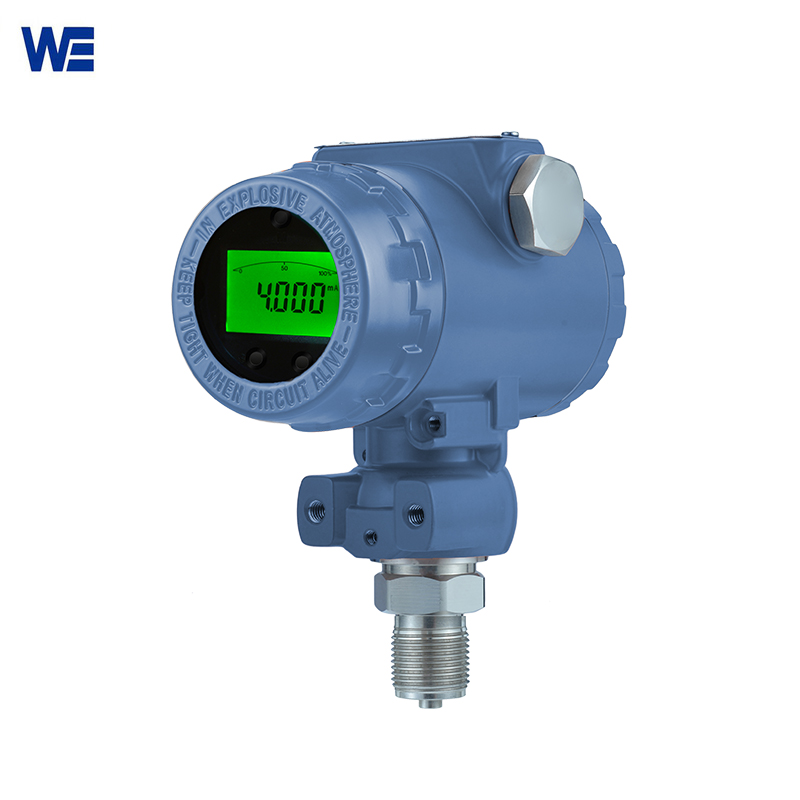

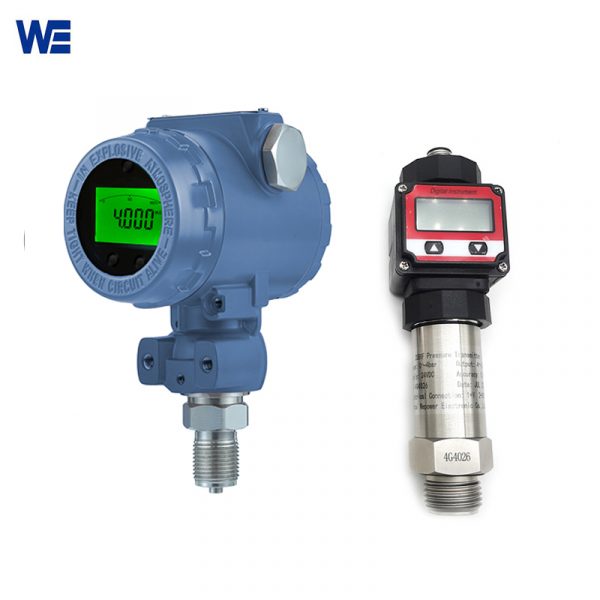

Digital Pressure Sensor 4-20mA

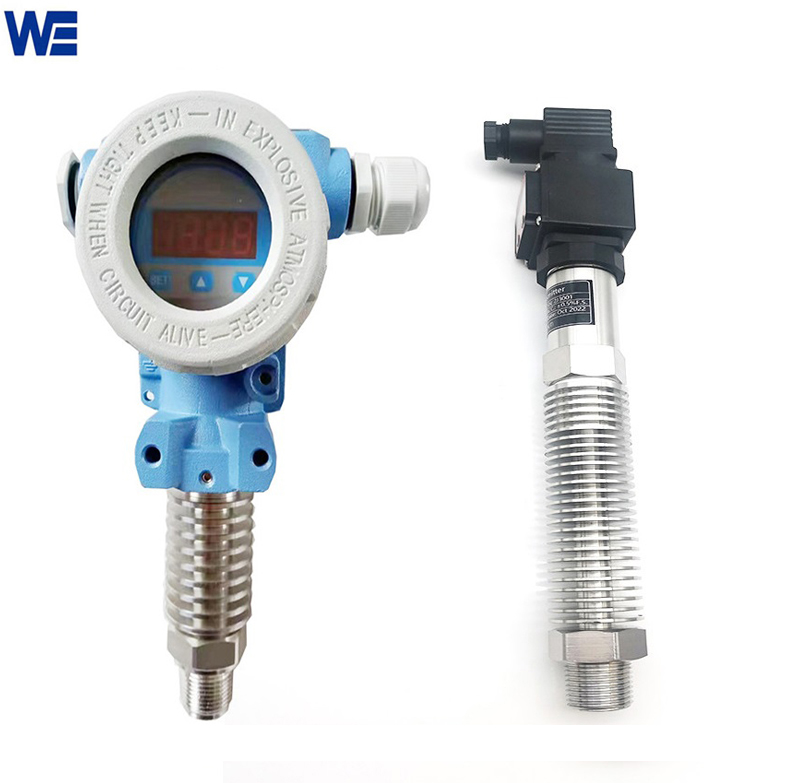

WE2088 digital pressure transmitter is assembled with high quality and high precision imported sensitive elements. High-temperature models adopt multi-fin radiator structure, so that the pressure sensor can work steadily for long time at 315℃.
WE2088 series digital pressure sensor, based on different industrial applications,a variety of circuit board types (analog board, digital board, smart board, etc.) can be selected , such as petroleum, chemical, metallurgy, electricity ,medicine, beer ,water treatment and other industries process monitoring and control .
WE2088 pressure transmitter is assembled with high quality and high precision imported sensitive elements. WE2088 digital pressure sensor has compact structure, light weight, easy to install and maintain, zero point and range can be continuously adjusted outside, and wide migration range. High-temperature products adopt multi-fin radiator structure, so that the pressure transmitter can work steadily for a long time at 315℃.
| Product Name | WE2088 Digital Economic Pressure Sensor |
| Accuracy | 0.2%fs ,0.5%fs |
| Stability | better than 0.25%fs annually |
| Measuring Range | 5kpa-60Mpa |
| temperature influence(-50~50℃) | less ±0.15%/10℃ |
| working voltage | 12.5v~30v dc |
| ambient temperature | -20~85℃ |
| medium temperature | Stardard:-40~120℃/High Temp: Max 315℃ |
| storage temperature | -40~110℃ |
| compensation temperature | -15~50℃ |
| wetted diaphragm | SS316l, ceramic |
| process connection element | stainless steel |
| sealing element | fluororubber |
| shell/housing | Aluminium alloy |
| protection | IP65 |
| Signal Output | 4-20Ma/0-10Ma |
| Electrical Connection | M20*1.5 |
| Process Connecting | M20*15 Thread or customer request |
Pressure measurement plays a vital role in industry, which is directly related to the stability, safety and efficiency of industrial production.Wepower Electronic is your reliable pressure measuring expert ,contact us for learn more !
