Head Mount Temperature Transmitters
Industrial thermocouple and thermal resistance signals can be converted into linear 4-20mA, 0-10mA output signals by installing the Head Mount Temperature Transmitter directly into the thermocouple and RTD junction box to form an integrated structure.
Widely Applications Of Head Mount Temperature Transmitter:
The Head Mounted Temperature Transmitter produced by Wepower Electronic can be directly installed on the thermocouple and thermal resistor in the junction box to form an integrated structure for temperature measurement and monitoring. Head mount temperature transmitter can be widely used in Process Industry, Machinery Manufacturing, Construction Industry, New Energy, Shipbuilding Industry, Chemical Industry, Metallurgy, Petroleum, Machinery, Food, Automobile, Environmental Protection, Electric Power, Textile and other industries.
Advantages Of Head Mount Temperature Transmitter:
▲Preferred Materials
▲Exquisite Workmanship
▲Quick Response
▲Accurate Temperature Measurement
▲Wide Application
▲Technical Support
▲Strong Anti-Interference Ability
▲Flexible And Convenient Installation And Operation

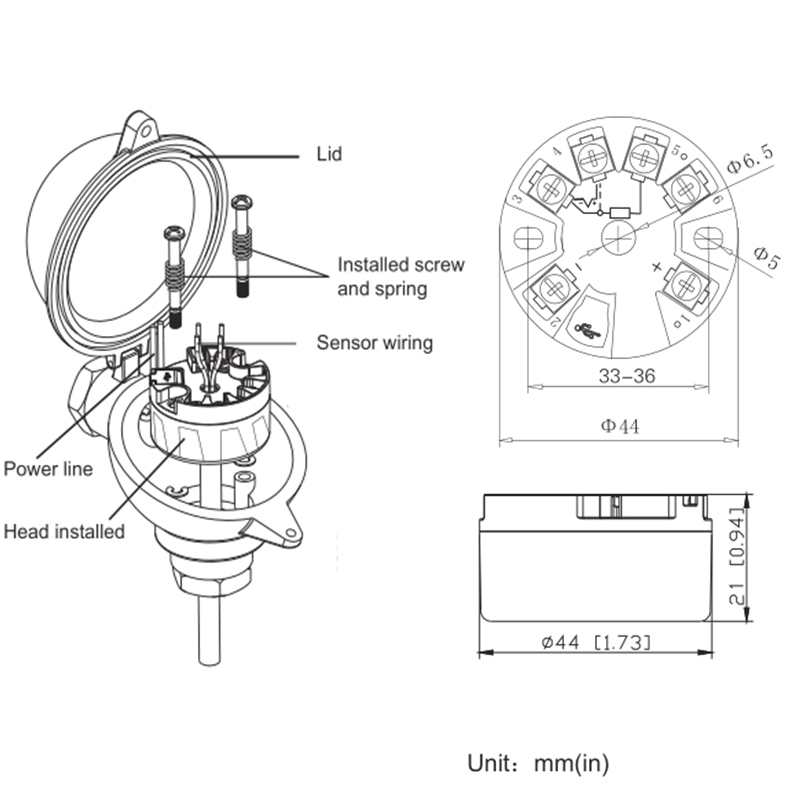

Structure Diagram:
Parameters:
| Model | Head Mounted Temperature Transmitter |
| Accuracy | 0.5%FS, 0.2%FS , |
| Power supply | DC 12-40V |
| Input signal | RTD (PT100, Cu50), thermocouple (B/E/J/K/N/R/S/T), resistance, voltage (Mv) |
| Output signal * | 4-20Ma, 1-5V |
| Digital communication * | Hart protocol (optional) |
| Response time | ≤1s |
| Working temperature | -40~+85℃; humidity: 5%~95%RH |
| Settable parameter | Input signal, measuring range, cold junction compensation (automatic adjusting) |
| Configuration | PAD or PC |
| Type of sensor | Measuring range | Minimum measuring range | Connection type |
| PT100 | -200~+850℃ | 10K | 3-wire |
| Cu50 | -50~+150℃ | 10K | 3-wire |
| B | 400~+1820℃ | 500K | 2-wire |
| E | -100~+1000℃ | 50K | 2-wire |
| J | -100~+1200℃ | 50K | 2-wire |
| K | -180~+1372℃ | 50K | 2-wire |
| N | -180~+1300℃ | 50K | 2-wire |
| R | -50~+1760℃ | 500K | 2-wire |
| S | -500~+1760℃ | 500K | 2-wire |
| T | -200~+400℃ | 50K | 2-wire |
| Resistance transmitter | 0~4500Ω | 10Ω | 2-wire |
