Thermocouple Input Transmitter
 In temperature measurement and control systems, thermocouple input transmitters are crucial parts. If in need of thermocouple input transmitter, welcome to contact us.
Applications Of Thermocouple Input Transmitter:
In temperature measurement and control systems, Thermocouple Input Transmitters are crucial parts. The thermocouple input transmitters are essential for correctly monitoring and controlling temperature, which is a must in many areas, such as process industry, manufacturing, construction industry, food processing and pharmaceutical industry.

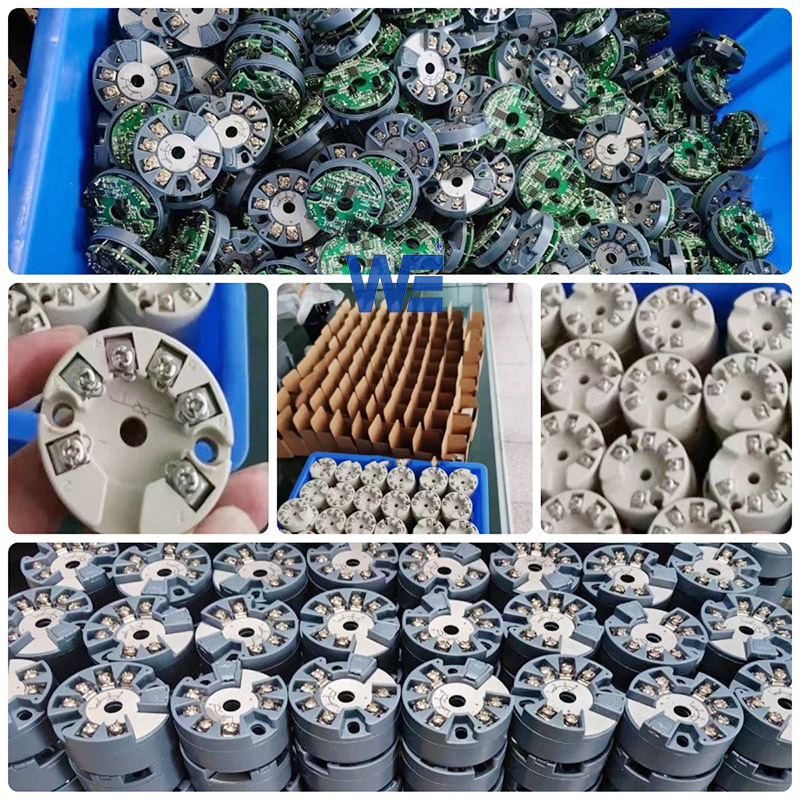

Strong Factory, Precision Manufacturing:
â–²Selected Materials
â–²Exquisite Workmanship
â–²Quick Response
â–²Accurate Temperature Measurement
â–²Wide Application
â–²Technical Support
Parameters:
| Model | Thermocouple Input Transmitter |
| Compensation precision | ±1℃ |
| Installation area | B-type top cassette installation |
| Installation angle | Unlimited |
| Output signal * | 4-20Ma, 1-5V, overlaid HART protocol |
| Digital communication * | Hart protocol (optional) |
| Response time | Reach to 90% of the final value for 700ms |
| Working temperature | -40~+85℃; humidity: 5%~95%RH |
| Settable parameter | Input signal, measuring range, cold junction compensation (automatic adjusting) |
| Installation area | B-type top cassette installation |
| Type of sensor | Measuring range | Minimum measuring range | Connection type |
| PT100 | -200~+850℃ | 10K | 3-wire |
| Cu50 | -50~+150℃ | 10K | 3-wire |
| B | 400~+1820℃ | 500K | 2-wire |
| E | -100~+1000℃ | 50K | 2-wire |
| J | -100~+1200℃ | 50K | 2-wire |
| K | -180~+1372℃ | 50K | 2-wire |
| N | -180~+1300℃ | 50K | 2-wire |
| R | -50~+1760℃ | 500K | 2-wire |
| S | -500~+1760℃ | 500K | 2-wire |
| T | -200~+400℃ | 50K | 2-wire |
| Resistance transmitter | 0~4500Ω | 10Ω | 2-wire |

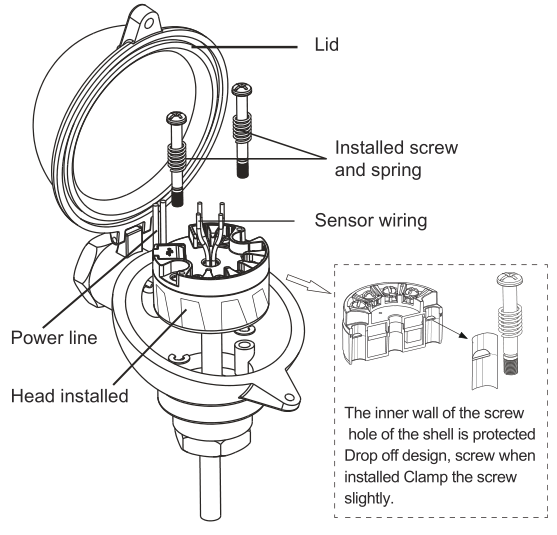

Installation Guidance:
