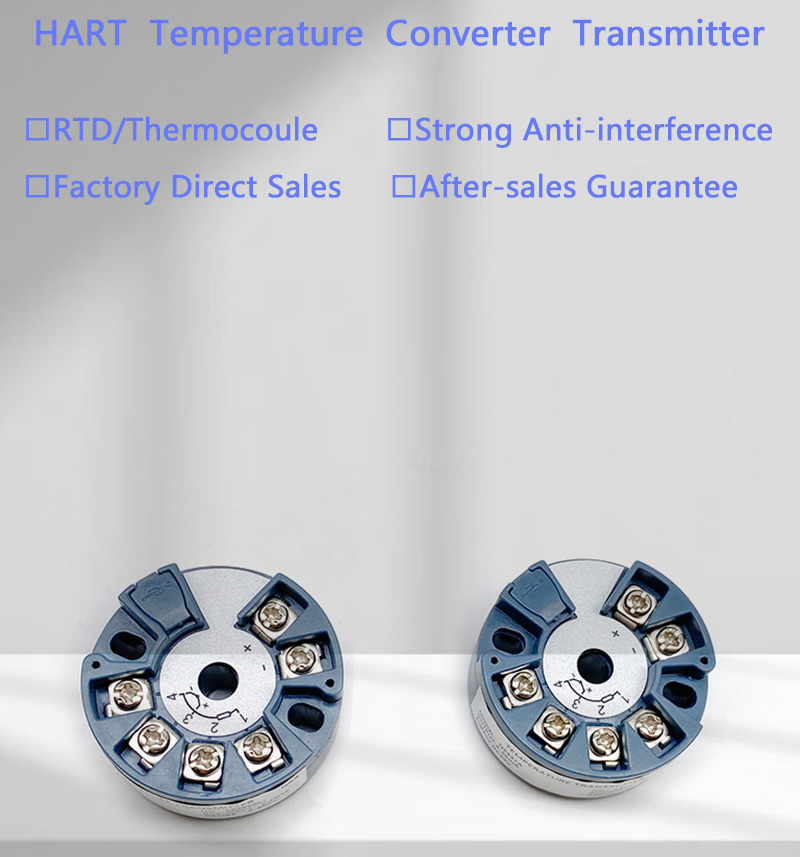

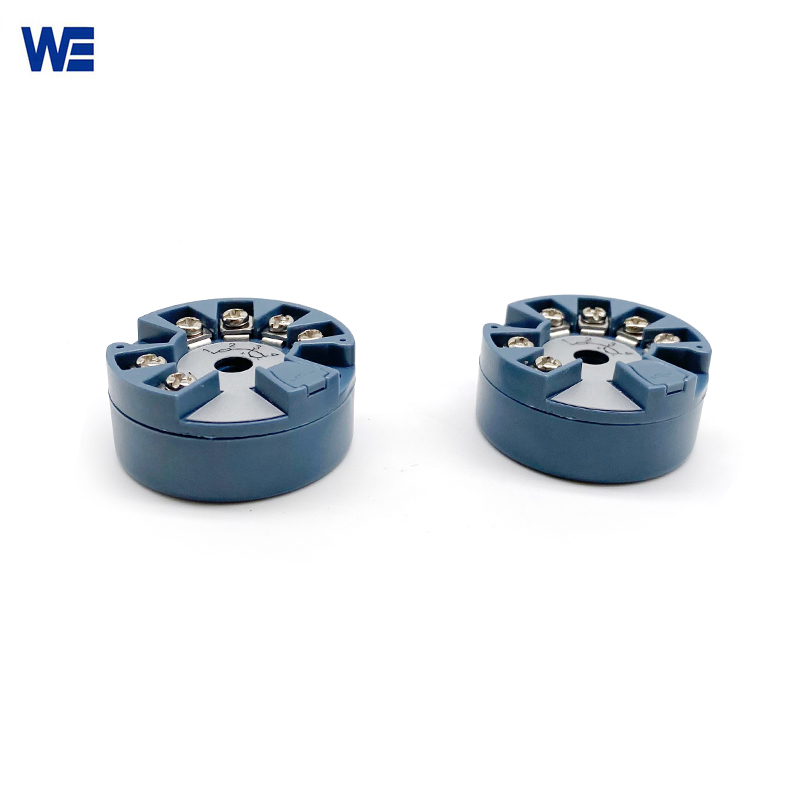

Programmable Temperature Transmitter Module

This programmable temperature transmitter module is primarily used with RTD (Pt100/Pt1000) and thermocouples (K-type, S-type, etc.) for temperature measurement. Temperature transmitter module’s core working principle involves sensing temperature through internal components, converting temperature changes into electrical signals, and then outputting standardized signals such as 4-20mA and HART after conversion and processing. The programmable temperature transmitter module can be directly installed in a sensor junction box and is suitable for various industrial temperature measurement scenarios, including pipelines, boilers, reactors, and equipment cavities.

Advantages Of Wepower’s Programmable Temperature Transmitter Module:

• High adaptability: The temperature transmitter module is compatible with mainstream RTDs and thermocouples, supports multiple output signals, and can be flexibly adapted to different industrial scenarios and control systems.
• High stability: Precision circuit design, low temperature drift, strong anti-aging ability, stable operation over a wide range of temperature range, and small long-term measurement accuracy error.
• High cost-effectiveness: The integrated modular design reduces production and installation costs, and its compact structure does not occupy additional space, meeting the requirements of “low cost and high value”.

As a core component for temperature measurement, this PT100 to 4-20mA module offers advantages such as “precise conversion, stable transmission, and convenient adaptation,” supporting industrial process optimization and safe production. Its modular and intelligent design adapts to the development of modern industrial automation, making it an indispensable spare part for various industrial temperature measurement applications.

Parameters:

Structure Diagram:
