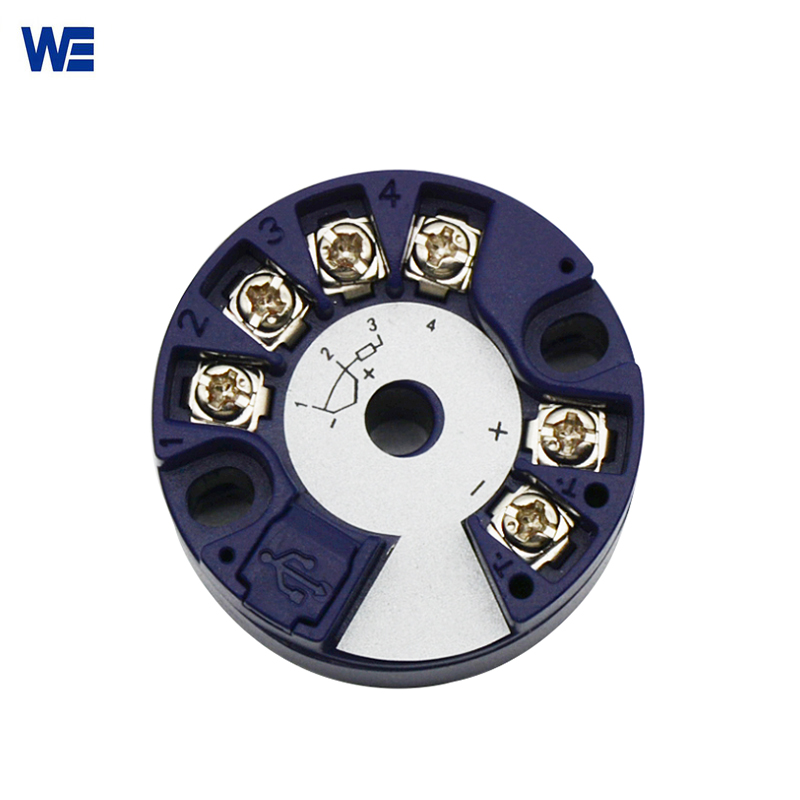

PT100 To 4-20mA Module

PT100 to 4-20mA module can be installed directly in the thermocouple and converts industrial thermocouple and thermal resistance signals into linear 4-20mA and 0-10mA output signals.

Category: Other Temperature Transmitter

Description

The PT100 To 4-20mA Module is a new generation of temperature monitoring equipment with a wide range of applications in the industrial sectors of metallurgy, petroleum, chemical, electric power, light industry, textile, food, national defense, and science. PT100 to 4-20mA module can be installed directly in the thermocouple and converts industrial thermocouple and thermal resistance signals into linear 4-20mA and 0-10mA output signals.

Features:

Compact form
Simple to install
Finding the short-circuit and open-circuit inputs
High accuracy
Configurable for PC or handheld operator
Configurable data committed to memory
Work stability, low power consumption, range temperature
For the connection of RTD and thermocouple sensors
Electromagnetic compatibility in compliance with IEC61000-4-4:2004, GB/T17626.4-608

Parameters:

Model	PT100 to 4-20mA Module
Accuracy	0.5%FS, 0.2%FS
Power supply	DC 12-40V
Input signal	RTD (PT100, Cu50), thermocouple (B/E/J/K/N/R/S/T), resistance, voltage (Mv)
Output signal *	4-20Ma, 1-5V
Digital communication *	Hart protocol (optional)
Response time	≤1s
Working temperature	-40~+85℃; humidity: 5%~95%RH
Settable parameter	Input signal, measuring range, cold junction compensation (automatic adjusting)
Configuration	PAD or PC

Type of sensor	Measuring range	Minimum measuring range	Connection type
PT100	-200~+850℃	10K	3-wire
Cu50	-50~+150℃	10K	3-wire
B	400~+1820℃	500K	2-wire
E	-100~+1000℃	50K	2-wire
J	-100~+1200℃	50K	2-wire
K	-180~+1372℃	50K	2-wire
N	-180~+1300℃	50K	2-wire
R	-50~+1760℃	500K	2-wire
S	-500~+1760℃	500K	2-wire
T	-200~+400℃	50K	2-wire
Resistance transmitter	0~4500Ω	10Ω	2-wire

Installation Guidance:

PT100 To 4-20mA Module
