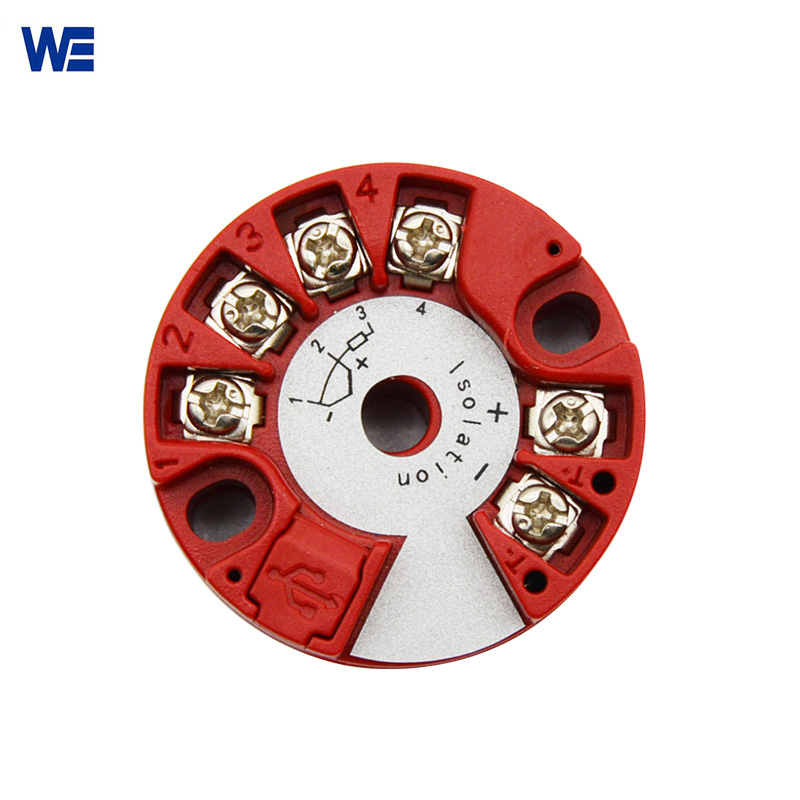

PT100 To 4-20mA Converter
PT100 to 4-20mA converter produced by Wepower Electronic is reliable and trustworthy. If you are in need of PT100 to 4-20mA converter, Now, contact Wepower!
Using the HART modem, the PT100 to 4-20mA Converter may remotely manage information, configure, monitor variables, calibrate, and maintain the transmitter’s model, graduation number, and range. PT100 to 4-20mA Converter produced by Wepower Electronic is reliable and trustworthy.
Features Of PT100 To 4-20mA Converter:Â
- Compact structure
- Simple to install
- Identification of open and short-circuit inputs
- Self-monitoring
- PC or handheld operator configurable
- Configurable information memorized
- High precision, low power dissipation, range temperature ,stability work
- Interfaces to all standard thermocouples and RTDs.
Parameters:
| Model | PT100 to 4-20mA Converter |
| Accuracy | 0.5%FS, 0.2%FS |
| Power supply | DC 12-40V |
| Input signal | RTD (PT100, Cu50), thermocouple (B/E/J/K/N/R/S/T), resistance, voltage (Mv) |
| Output signal * | 4-20Ma, 1-5V |
| Digital communication * | Hart protocol (optional) |
| Response time | ≤1s |
| Working temperature | -40~+85℃; humidity: 5%~95%RH |
| Settable parameter | Input signal, measuring range, cold junction compensation (automatic adjusting) |
| Configuration | PAD or PC |
| Type of sensor | Measuring range | Minimum measuring range | Connection type |
| PT100 | -200~+850℃ | 10K | 3-wire |
| Cu50 | -50~+150℃ | 10K | 3-wire |
| B | 400~+1820℃ | 500K | 2-wire |
| E | -100~+1000℃ | 50K | 2-wire |
| J | -100~+1200℃ | 50K | 2-wire |
| K | -180~+1372℃ | 50K | 2-wire |
| N | -180~+1300℃ | 50K | 2-wire |
| R | -50~+1760℃ | 500K | 2-wire |
| S | -500~+1760℃ | 500K | 2-wire |
| T | -200~+400℃ | 50K | 2-wire |
| Resistance transmitter | 0~4500Ω | 10Ω | 2-wire |
Structure Diagram:
