Radar Type Level Measurement Transmitter
Wepower level measurement instruments include radar type level measurement transmitters. Wepower is dedicated to standardization and diversification and has almost 20 years of field automation instrument expertise.
An indispensable instrument for level measurement is the RD801 Radar Type Level Measurement Transmitter. The technology of sensing liquid levels has advanced to unprecedented heights because to radar’s unique radio transmission. Radar-type level measuring transmitters are typical for measuring highly corrosive liquids.

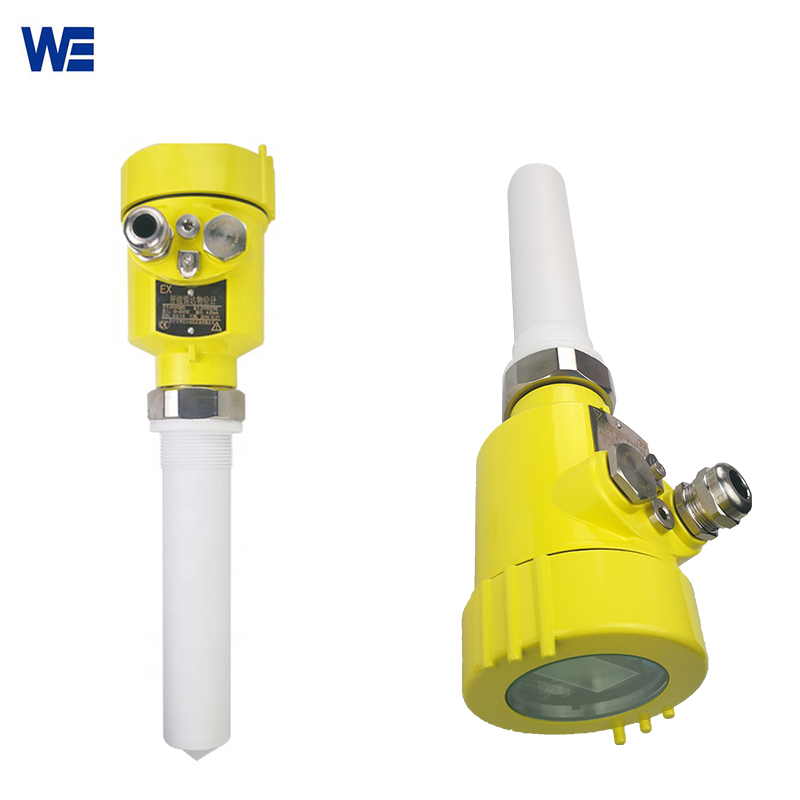

The RD801 radar type level measuring transmitter has a distinct appearance from other radar transmitters. The solid cylindrical probe of the radar-style level measurement transmitter has a triangular tip. This liquid level measuring device, which is specifically employed in the chemical industry, is of the radar kind. Because the Wepower RD801 radar type level measuring transmitter has an anti-corrosive PTFE antenna and good sealing technology, it can meet the requirements of most chemical industry fields.
What is the process connecting of radar type level measurement transmitter?
The connection methods of radar type level measurement transmitter are thread or flange. Customers can choose from various styles and specifications. Taking flange installation as an example, the customer only needs to connect the flange to the appropriate position of the tank to measure the liquid inside. Our company’s flanges are guaranteed standard stainless steel 304/316.
| Product Name | Radar type level measurement transmitter-RD801 |
| Model | WERD801 |
| Medium | Corrosive liquid |
| Process Connection | Thread G1½″A ,Thread 1½ ,NPT, Universal Flange |
| Measurement Accuracy | ± 5mm |
| Display | LCD, Programmable |
| Material | Antenna: PTFE |
| Seal between shell and shell cover: Silicone rubber | |
| Casing window: Polycarbonate | |
| The ground terminal: Stainless Steel | |
| Housing: Aluminum / Stainless steel | |
| Cable parameters | Cable entrance / plug: 1 M20xl.5 cable entrance; 1 blind plug |
| Terminal: Conductor cross section 2.5mm² | |
| Power Supply | 2-wire（DC24V）/ 4-wire（DC24V /AC220V ） |
| Output signal | 4… 20mA / HART (2-wire / 4-wire) |
| RS485/ Modbus | |
| Maximum measuring range | 20m |
| Pressure | -0.1-0.3MPa |
| Adjust time | about 1 second (depending on the parameter settings) |
| Explosion-proof Grade | ExiaⅡC T6 Ga / Exd ⅡC T6 Gb |
| Process temperature | -40℃~130℃ the temperature of the antenna part |
| Working & Storage Temperature | (-40～100) ℃ |
