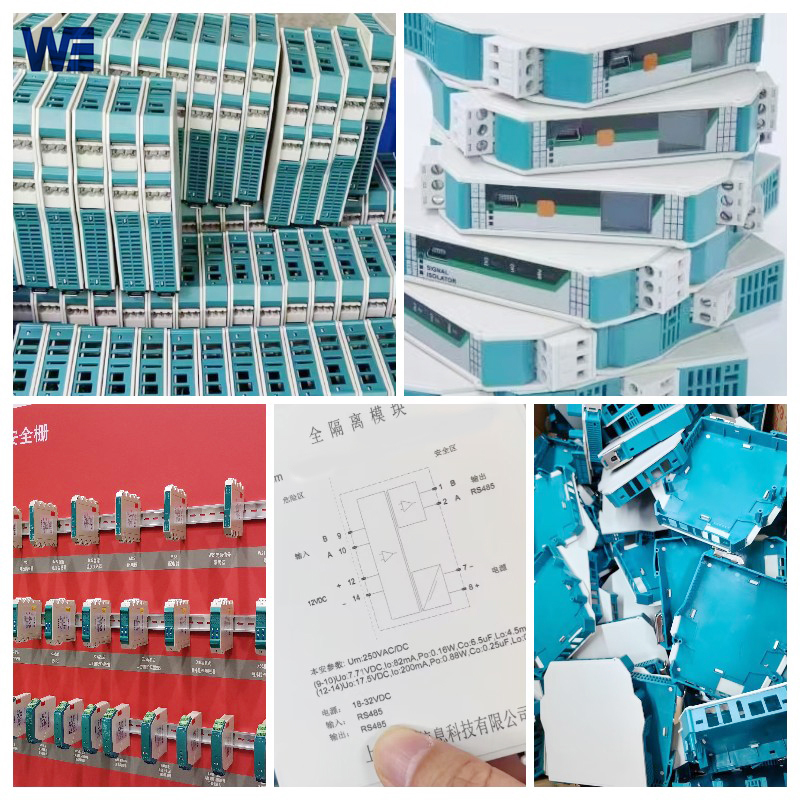

Rail Mounted Temperature Transmitter
Rail Mounted Temperature Transmitter isolates and amplifies the signal of temperature sensor (such as thermal resistor and thermocouple), converts it into a DC signal linear with temperature and outputs it to the control system.
Working Principle Of Rail Mounted Temperature Transmitter:
Rail Mounted Temperature Transmitter isolates and amplifies the signal of temperature sensor (such as thermal resistor and thermocouple), converts it into a DC signal linear with temperature and outputs it to the control system. Its sensor input side is electrically isolated from the analog output end, so Rail Mounted Temperature Transmitter is very suitable for fast measurement of thermocouple and thermal resistor.
Rail Mounted Temperature Transmitter can be used with unit combination instruments and DCS, PLC and other systems. It can provide the required measurement range according to customer requirements. The rail mounted temperature transmitter is easy to install and is widely used in petroleum, chemical, manufacturing, electric power, metallurgy and other industries.
Features:
- Strong compatibility
- High precision, millisecond response
- Output overcurrent protection
- Output short circuit protection
- Error signalling in the event of sensor break
- Support multiple input and output
Parameters:
| Rail Mounted Temperature Transmitter | |
| Input | |
| Input Signal | RTD: PT100,Cu50 and other RTD signals |
| Thermocouple: K, T,E,J, N, R,S, B, Wre325,Wre326,BA1,BA2 | |
| Output | |
| Output Signal | 4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;Customized |
| Output Load Resistance | DC current: 0~10mA: ≤700Ω; 4~20mA: ≤600Ω; 0~±10mA: ≤1kΩ; 0~±20mA: ≤500Ω |
| DC voltage: 0(1)~5V: ≥1MΩ; 0~10V: ≥2MΩ;0~±5V: ≥1MΩ; 0~±10V: ≥2MΩ | |
| Please specify your requirements before order if greater output load capacity is required | |
| Other Parameters | |
| Power Supply | DC24V,±10%;AC85-265V |
| Current Consumption | ≤70mA(1 in 1 out,24V power supply, output 20mA); |
| ≤90mA(1 in 2out,24V power supply, output 20mA); | |
| ≤100mA(2 in 2 out,24V power supply, output 20mA); | |
| Accuracy | 0.2%F.S. |
| Response Time | Less than 0.5s |
| Temperature Drift | 0.005%F.S./℃ (-20℃~+55℃) |
| Isolation Intensity | 1500V AC/1min(between input-ouput-power) |
| Insulation Resistance | ≥100MΩ(between input-ouput-power) |
| Working Temperature & Humidity& Allowed Pressure | -20℃~+55℃ 10%RH~90%RH (40℃) 80kpa-106Kpa |
| EMC | Complies with GB/T 18268(IEC61326-1) |
| Applicable Equipment | 2-wires or 3-wires RTD |
| Signal Type | Measurements Range | Minimum Range | Output Accuracy | ||
| Thermocouples (TC) |
T | -200~400℃ | 25℃ | ±0.4℃/0.2% | |
| E | -200~1000℃ | 25℃ | ±0.4℃/0.2% | ||
| J | – 210~1200℃ | 25℃ | ±0.4℃/0.2% | ||
| K | -200~1372℃ | 25℃ | ±0.4℃/0.2% | ||
| N | -200~1300℃ | 25℃ | ±0.4℃/0.2% | ||
| R | 0~1768℃ | 100℃ | ±0.8℃/0.2% | ||
| S | 0~1768℃ | 100℃ | ±0.8℃/0.2% | ||
| B | 150~1820℃ | 100℃ | ±1.0℃/0.2% | ||
| mV input | -120~120mV | 10mV | ±10μV /0.2% | ||
| -1000~1000mV | 50mV | ±100μV /0.2% | |||
| Resistance Temperature (RTD) |
Pt50 | -200~850℃ | 10℃ | ±0.15℃/0.2% | |
| Pt100 | -200~850℃ | 10℃ | ±0.15℃/0.2% | ||
| Pt500 | -200~850℃ | 10℃ | ±0.1℃/0.2% | ||
| Pt1000 | -200~850℃ | 10℃ | ±0.1℃/0.2% | ||
| Ohm input | 0~500 Ω | 100Ω | ±0.2 Ω/0.2% | ||
| 0~4500 Ω | 100Ω | ±1.0 Ω/0.2% | |||
Dimension:
Installation Diagram:
