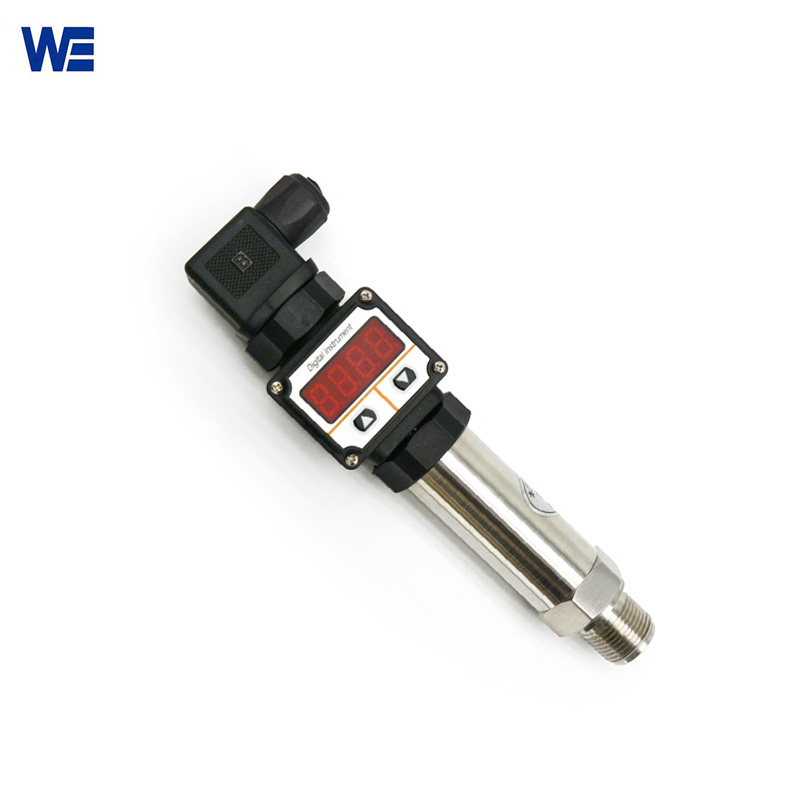

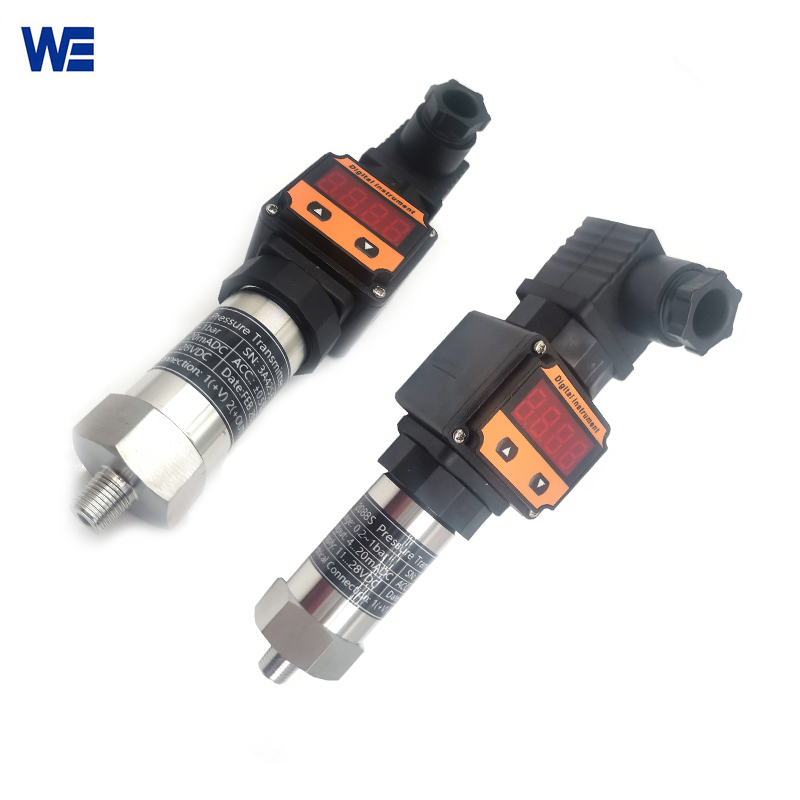

Stainless Steel Pressure Sensor
Stainless steel pressure sensor is a tiny piezoresistive diffused silicon pressure transmitter for industrial measuring . Thread connecting stainless pressure sensors, also known as silicon type pressure transmitters, are very stable, highly accurate pressure measurement devices. Welcome to select stainless steel pressure sensors from Wepower Electronic .
Stainless steel pressure sensors(2088S) can be used to measure gauge pressure, absolute pressure and negative pressure. Pressure sensors can be used in water plants, oil refineries, sewage treatment plants, building materials, machinery and other industrial fields.

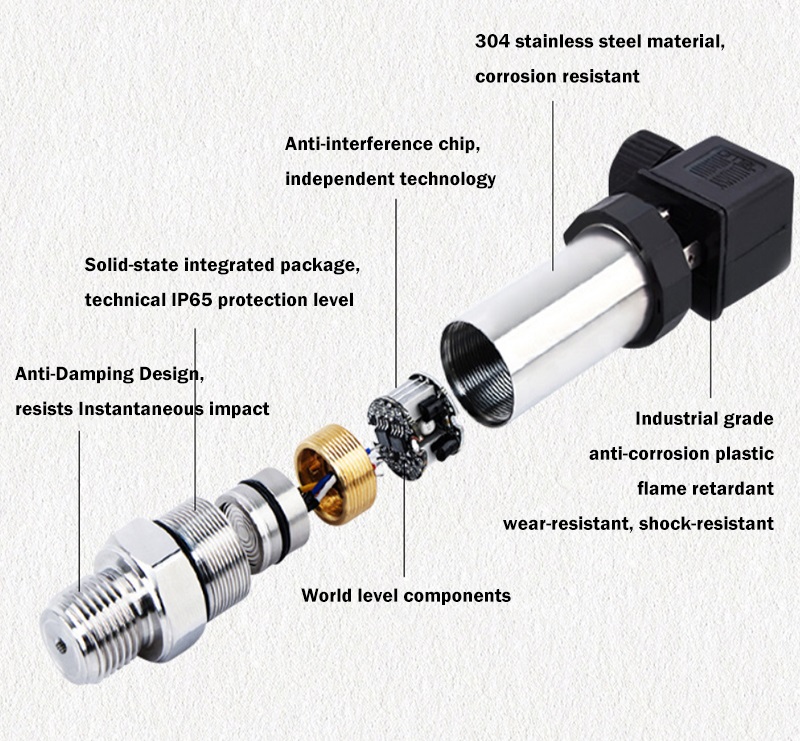

Our 2088S stainless steel pressure sensor uses the international advanced internal sensor device and main components. The pressure of the measured medium directly acts on the diaphragm of the sensor, and the changed resistance value will convert the measurement signal corresponding to this pressure. The thread connecting (1/2”NPT, G1/4”) pressure sensor is durable and not easy to break. 2088S Stainless steel pressure transmitter can be utilized in conjunction with a variety of moving coil indicators, digital pressure gauges, electronic potentiometers, intelligent regulators, and computer systems.
| Product Name | Stainless Steel Pressure Sensor (2088S) |
| Sensor Type | Diffusion Silicon |
| Range | -0.1…0～0.01…100MPa (-1…0~0.1…1000bar) |
| Accuracy Class | 0.1,0.2,0.5 grade |
| Explosion-proof type | General type, Exd II C T6 Gb, Exia II C T6 Ga |
| Process interface type and size | M20x1.5 male thread, G1/2 male thread, 1/2NPT male thread, special specifications |
| Media diaphragm material | SS316L, Hastelloy C, Tantalum |
| Temperature Type | Normal temperature, low to medium temperature (80-150°C), high to medium temperature (150-250°C), high temperature (250-315°C), special specifications |
| Wiring method | Direct wiring, Hirschmann connectors, aviation plugs, special size |
| Output signal | 4-20mA DC analog board, 4-20mA DC digital board, special specifications |
| Operating power | 24V DC, 220V AC, special specification |
What is the difference between Sensor and Transducer?
There is no evident distinction in some circumstances. We refer to traditional pressure measurement tools as transmitters. The term “sensor” or “transducer” is used to describe the small type of pressure measurement apparatus.
In general, sensors are used to transform physical quantities and energy from their environment into a signal that can be easily read, whereas transducers are used to transform physical quantities and energy into an electrical signal.
Pressure measurement plays a vital role in industry, which is directly related to the stability, safety and efficiency of industrial production.Wepower Electronic is your reliable pressure measuring expert ,contact us for learn more !
