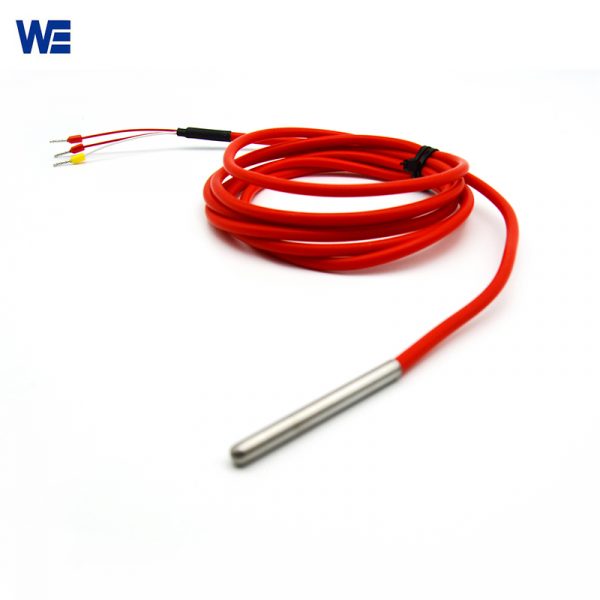

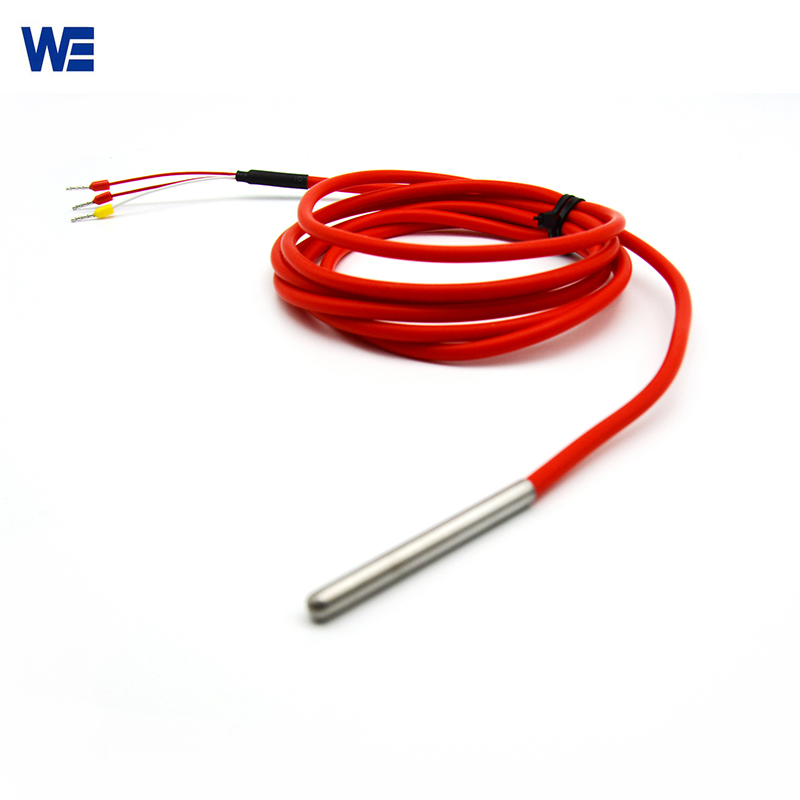

Low Temperature Thermal Resistance
RTD sensors have a standard temperature range of -200 to 500 °C, while low temperature type thermal resistance sensors have a range of -200 to 200 °C.
RTD sensors have a standard temperature range of -200 to 500 °C, while Low Temperature Thermal Resistance sensors have a range of -200 to 200 °C. Wepower Electronic RTD sensor, which is extensively utilized in the food, refrigeration, medical, machinery, rubber, biology, and white power industries, is outfitted with a premium grade imported platinum resistance chip and uses wire that is resistant to acid and alkali and low temperatures.
Features:
- Imported platinum resistance chip
- Accuracy grade: A grade
- Acid and alkali resistant, low temperature resistant lead wire
- Probe diameter 3, 4, 5, 6, 8mm lead length can be customized
- Grounded, underground and exposed junctions
- Epoxy sealed cold ends
- Straight, 45° bend or 90° bend probe
Parameters:
| Name | Low Temperature Thermal Resistance |
| Index number | PT100 |
| Accuracy level | Standard A level. 1/3B, B (can be customized ) |
| Temperature range | -200~500 °C (can be customized according to customer requirements) |
| wire material: | PTFE silver plated wire / metal shielded wire / silicone wire (can be customized according to customer requirements) |
| Probe size | 4*30mm. 4*40, 4*50, 4*60, 5*30, 5*40, 5*50, 5*60, 6*30, 6*40, 6*50, 6*60 (can be customized according to customer requirements) |
| Probe material | 316 stainless steel |
| Seal | double roll groove rolling + epoxy seal |
| Wire length | customized |
| Terminal | 3 insulated forks |
| Accuracy | ±1℃ |
Measuring Range And Tolerance:
| Model | Index Number | Measuring Range | Accuracy Grade | Tolerance |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | A Grade | ±（0.15+0.002 ltl） |
| WZPK | Pt100/PT1000 | -200­­-+500℃ | B Grade | ±（0.30+0.005 ltl） |
